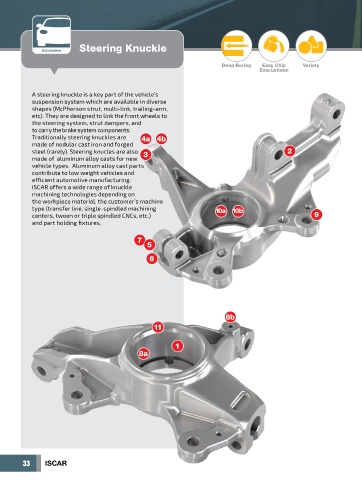

Steering Knuckle

Deep Boring Easy Chip Variety
Evacuationn

A steering knuckle is a key part of the vehicle’s
suspension system which are available in diverse
shapes (McPherson strut, multi-link, trailing-arm,
etc). They are designed to link the front wheels to
the steering system, strut dampers, and
to carry the brake system components.
Traditionally steering knuckles are 4a 4b
made of nodular cast iron and forged
steel (rarely). Steering knucles are also 3 2
made of aluminum alloy casts for new
vehicle types. Aluminum alloy cast parts
contribute to low weight vehicles and
efficient automotive manufacturing.
ISCAR offers a wide range of knuckle
machining technologies depending on
the workpiece material, the customer’s machine
type (transfer line, single-spindled machining 10a 10b
centers, tween or triple spindled CNCs, etc.) 9
and part holding fixtures.

7
5

6

8b
11

1
8a

33 ISCAR
