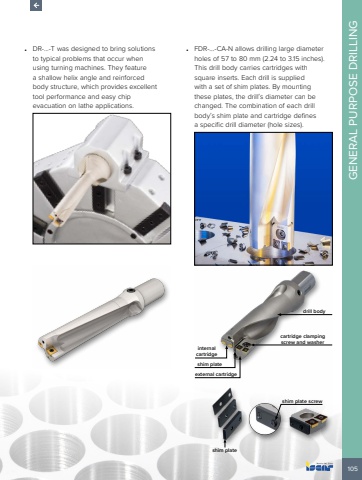

105GENERAL PURPOSE DRILLING%u2022 DR-...-T was designed to bring solutions to typical problems that occur when using turning machines. They feature a shallow helix angle and reinforced body structure, which provides excellent tool performance and easy chip evacuation on lathe applications.%u2022 FDR-%u2026-CA-N allows drilling large diameter holes of 57 to 80 mm (2.24 to 3.15 inches). This drill body carries cartridges with square inserts. Each drill is supplied with a set of shim plates. By mounting these plates, the drill%u2019s diameter can be changed. The combination of each drill body%u2019s shim plate and cartridge defines a specific drill diameter (hole sizes).shim platecartridge clamping screw and washer internal cartridgeshim plate screwexternal cartridgeshim platedrill body
