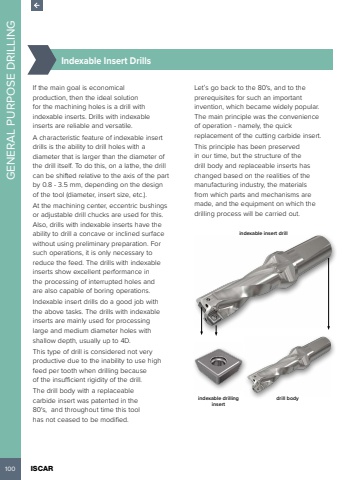

100 ISCAR GENERAL PURPOSE DRILLING %u00bd%u0009Indexable Insert DrillsIf the main goal is economical production, then the ideal solution for the machining holes is a drill with indexable inserts. Drills with indexable inserts are reliable and versatile. A characteristic feature of indexable insert drills is the ability to drill holes with a diameter that is larger than the diameter of the drill itself. To do this, on a lathe, the drill can be shifted relative to the axis of the part by 0.8 - 3.5 mm, depending on the design of the tool (diameter, insert size, etc.). At the machining center, eccentric bushings or adjustable drill chucks are used for this. Also, drills with indexable inserts have the ability to drill a concave or inclined surface without using preliminary preparation. For such operations, it is only necessary to reduce the feed. The drills with indexable inserts show excellent performance in the processing of interrupted holes and are also capable of boring operations. Indexable insert drills do a good job with the above tasks. The drills with indexable inserts are mainly used for processing large and medium diameter holes with shallow depth, usually up to 4D. This type of drill is considered not very productive due to the inability to use high feed per tooth when drilling because of the insufficient rigidity of the drill. The drill body with a replaceable carbide insert was patented in the 80's, and throughout time this tool has not ceased to be modified.Let%u2019s go back to the 80's, and to the prerequisites for such an important invention, which became widely popular. The main principle was the convenience of operation - namely, the quick replacement of the cutting carbide insert. This principle has been preserved in our time, but the structure of the drill body and replaceable inserts has changed based on the realities of the manufacturing industry, the materials from which parts and mechanisms are made, and the equipment on which the drilling process will be carried out. indexable insert drillindexable drilling insertdrill body
