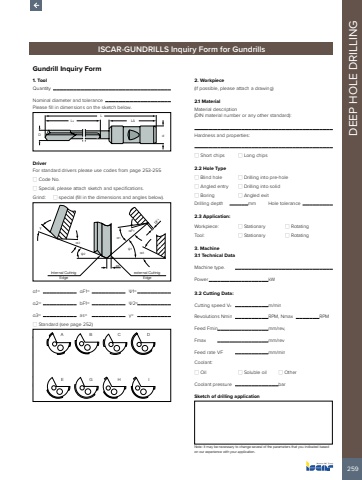

259DEEP HOLE DRILLINGISCAR-GUNDRILLS Inquiry Form for GundrillsGundrill Inquiry Form 1. ToolQuantityNominal diameter and tolerancePlease fill in dimensions on the sketch below.LLs LAD dDriverFor standard drivers please use codes from page 253-255o Code No.o Special, please attach sketch and specifications.Grind: o special (fill in the dimensions and angles below).as%u03b3%u03b12%u03c82%u03b11%u03b13bF1%u03b1F1%u03c81external CuttnigEdgeInternal CuttnigEdge%u03b11= %u03b1F1= %u03a81=%u03b12= bF1= %u03a82=%u03b13= as= %u03b3=o Standard (see page 252)Coating:o TiN o TiCN o TiN+TiCN o Othero IC208 (TiN) o IC308 (TiCN) o IC508 (TiCN+TiN)o IC908 (TiAlN) o TiAINType:Please circle the required type. See page 300.A B C DE G H I2. Workpiece(If possible, please attach a drawing)2.1 MaterialMaterial description (DIN material number or any other standard):Hardness and properties:o Short chips o Long chips2.2 Hole Typeo Blind hole o Drilling into pre-holeo Angled entry o Drilling into solido Boring o Angled exitDrilling depth mm Hole tolerance2.3 Application:Workpiece: o Stationary o RotatingTool: o Stationary o Rotating3. Machine3.1 Technical DataMachine type.Power kW3.2 Cutting Data:Cutting speed Vc m/minRevolutions Nmin RPM, Nmax RPMFeed Fmin mm/rev,Fmax mm/revFeed rate VF mm/minCoolant:o Oil o Soluble oil o OtherCoolant pressure barSketch of drilling applicationNote: It may be necessary to change several of the parameters that you indicated based on our experience with your application.
