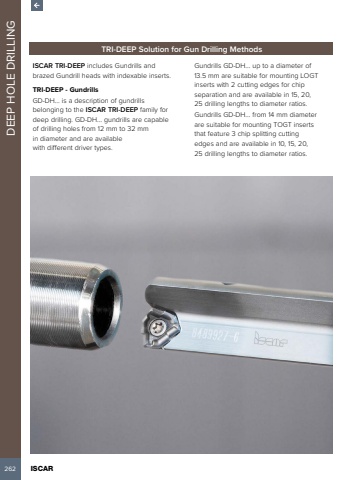

262 ISCAR DEEP HOLE DRILLINGTRI-DEEP Solution for Gun Drilling MethodsISCAR TRI-DEEP includes Gundrills and brazed Gundrill heads with indexable inserts.TRI-DEEP - GundrillsGD-DH%u2026 is a description of gundrills belonging to the ISCAR TRI-DEEP family for deep drilling. GD-DH%u2026 gundrills are capable of drilling holes from 12 mm to 32 mm in diameter and are available with different driver types.Gundrills GD-DH%u2026 up to a diameter of 13.5 mm are suitable for mounting LOGT inserts with 2 cutting edges for chip separation and are available in 15, 20, 25 drilling lengths to diameter ratios.Gundrills GD-DH%u2026 from 14 mm diameter are suitable for mounting TOGT inserts that feature 3 chip splitting cutting edges and are available in 10, 15, 20, 25 drilling lengths to diameter ratios.
