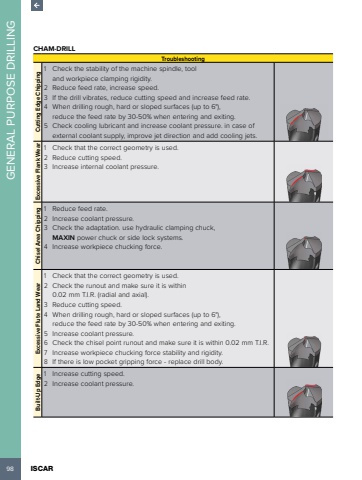

98 ISCAR GENERAL PURPOSE DRILLINGCHAM-DRILLTroubleshootingCutting Edge Chipping1 Check the stability of the machine spindle, tool and workpiece clamping rigidity.2 Reduce feed rate, increase speed.3 If the drill vibrates, reduce cutting speed and increase feed rate.4 When drilling rough, hard or sloped surfaces (up to 6%u00b0), reduce the feed rate by 30-50% when entering and exiting.5 Check cooling lubricant and increase coolant pressure. in case of external coolant supply, improve jet direction and add cooling jets.Excessive Flank Wear 1 Check that the correct geometry is used.2 Reduce cutting speed.3 Increase internal coolant pressure.Chisel Area Chipping1 Reduce feed rate.2 Increase coolant pressure.3 Check the adaptation. use hydraulic clamping chuck, MAXIN power chuck or side lock systems.4 Increase workpiece chucking force.Excessive Flute Land Wear1 Check that the correct geometry is used.2 Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial).3 Reduce cutting speed.4 When drilling rough, hard or sloped surfaces (up to 6%u00b0), reduce the feed rate by 30-50% when entering and exiting.5 Increase coolant pressure.6 Check the chisel point runout and make sure it is within 0.02 mm T.I.R.7 Increase workpiece chucking force stability and rigidity.8 If there is low pocket gripping force - replace drill body.Built-Up Edge1 Increase cutting speed.2 Increase coolant pressure.
