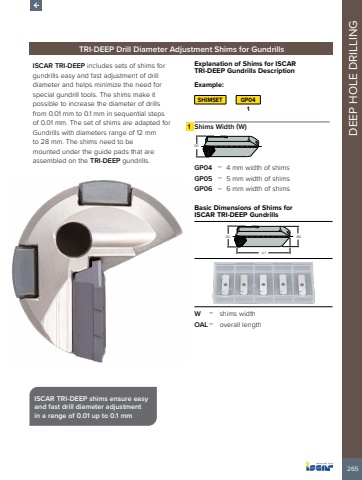

265DEEP HOLE DRILLINGTRI-DEEP Drill Diameter Adjustment Shims for GundrillsISCAR TRI-DEEP includes sets of shims for gundrills easy and fast adjustment of drill diameter and helps minimize the need for special gundrill tools. The shims make it possible to increase the diameter of drills from 0.01 mm to 0.1 mm in sequential steps of 0.01 mm. The set of shims are adapted for Gundrills with diameters range of 12 mm to 28 mm. The shims need to be mounted under the guide pads that are assembled on the TRI-DEEP gundrills.ISCAR TRI-DEEP shims ensure easy and fast drill diameter adjustment in a range of 0.01 up to 0.1 mmExplanation of Shims for ISCAR TRI-DEEP Gundrills DescriptionExample:SHIMSET GP0411 Shims Width (W)DCGP04 %u2013 4 mm width of shimsGP05 %u2013 5 mm width of shimsGP06 %u2013 6 mm width of shimsBasic Dimensions of Shims for ISCAR TRI-DEEP GundrillsDC BDW %u2013 shims widthOAL %u2013 overall length
