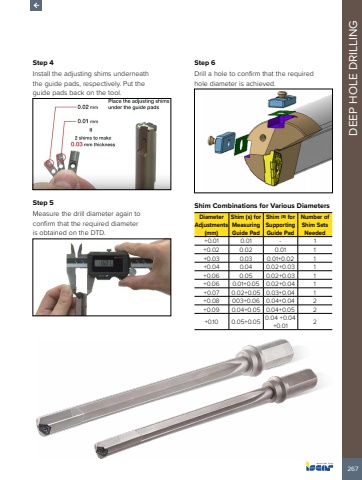

267DEEP HOLE DRILLINGStep 4Install the adjusting shims underneath the guide pads, respectively. Put the guide pads back on the tool.Step 5Measure the drill diameter again to confirm that the required diameter is obtained on the DTD.Step 6Drill a hole to confirm that the required hole diameter is achieved.Shim Combinations for Various DiametersDiameter Adjustments (mm)Shim (s) for Measuring Guide PadShim (8) for Supporting Guide PadNumber of Shim Sets Needed +0.01 0.01 - 1+0.02 0.02 0.01 1+0.03 0.03 0.01+0.02 1+0.04 0.04 0.02+0.03 1+0.06 0.05 0.02+0.03 1+0.06 0.01+0.05 0.02+0.04 1+0.07 0.02+0.05 0.03+0.04 1+0.08 003+0.06 0.04+0.04 2+0.09 0.04+0.05 0.04+0.05 2+0.10 0.05+0.05 0.04 +0.04 +0.01 2
