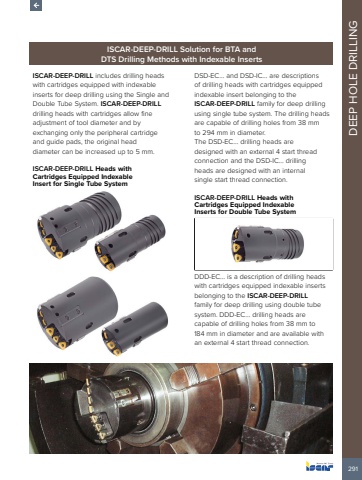

291DEEP HOLE DRILLINGISCAR-DEEP-DRILL Solution for BTA and DTS Drilling Methods with Indexable InsertsISCAR-DEEP-DRILL includes drilling heads with cartridges equipped with indexable inserts for deep drilling using the Single and Double Tube System. ISCAR-DEEP-DRILLdrilling heads with cartridges allow fine adjustment of tool diameter and by exchanging only the peripheral cartridge and guide pads, the original head diameter can be increased up to 5 mm.ISCAR-DEEP-DRILL Heads with Cartridges Equipped Indexable Insert for Single Tube SystemDSD-EC%u2026 and DSD-IC%u2026 are descriptions of drilling heads with cartridges equipped indexable insert belonging to the ISCAR-DEEP-DRILL family for deep drilling using single tube system. The drilling heads are capable of drilling holes from 38 mm to 294 mm in diameter. The DSD-EC%u2026 drilling heads are designed with an external 4 start thread connection and the DSD-IC%u2026 drilling heads are designed with an internal single start thread connection.ISCAR-DEEP-DRILL Heads with Cartridges Equipped Indexable Inserts for Double Tube SystemDDD-EC%u2026 is a description of drilling heads with cartridges equipped indexable inserts belonging to the ISCAR-DEEP-DRILLfamily for deep drilling using double tube system. DDD-EC%u2026 drilling heads are capable of drilling holes from 38 mm to 184 mm in diameter and are available with an external 4 start thread connection.
