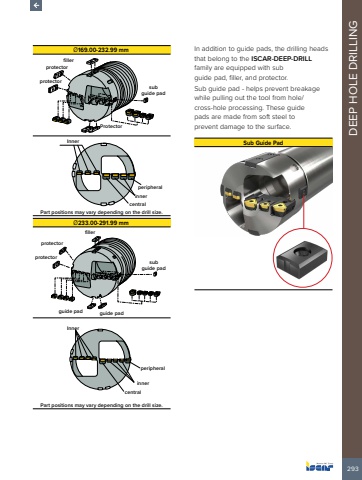

293DEEP HOLE DRILLING%u00d8169.00-232.99 mmfillerProtectorprotectorprotectorsub guide padperipheralinnercentralInnerPart positions may vary depending on the drill size. %u00d8233.00-291.99 mmguide pad guide padprotectorprotectorsub guide padfillerperipheralInnerinnercentralPart positions may vary depending on the drill size. In addition to guide pads, the drilling heads that belong to the ISCAR-DEEP-DRILLfamily are equipped with sub guide pad, filler, and protector.Sub guide pad - helps prevent breakage while pulling out the tool from hole/cross-hole processing. These guide pads are made from soft steel to prevent damage to the surface.Sub Guide Pad
