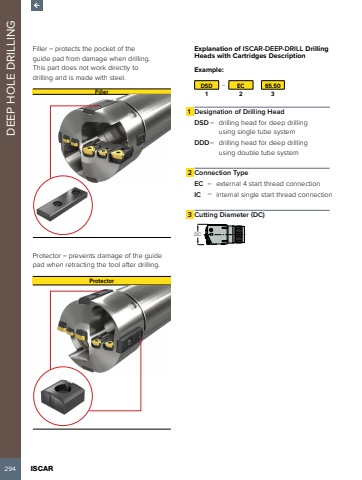

294 ISCAR DEEP HOLE DRILLINGFiller %u2013 protects the pocket of the guide pad from damage when drilling. This part does not work directly to drilling and is made with steel.FillerProtector %u2013 prevents damage of the guide pad when retracting the tool after drilling.ProtectorExplanation of ISCAR-DEEP-DRILL Drilling Heads with Cartridges DescriptionExample:DSD %u2013 EC 65.501 2 31 Designation of Drilling HeadDSD %u2013 drilling head for deep drilling using single tube systemDDD%u2013 drilling head for deep drilling using double tube system2 Connection TypeEC %u2013 external 4 start thread connectionIC %u2013 internal single start thread connection3 Cutting Diameter (DC)DC
