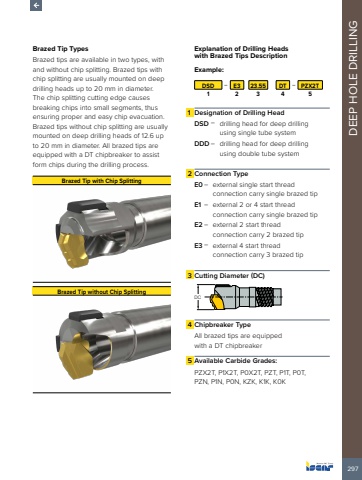

297DEEP HOLE DRILLINGBrazed Tip TypesBrazed tips are available in two types, with and without chip splitting. Brazed tips with chip splitting are usually mounted on deep drilling heads up to 20 mm in diameter. The chip splitting cutting edge causes breaking chips into small segments, thus ensuring proper and easy chip evacuation. Brazed tips without chip splitting are usually mounted on deep drilling heads of 12.6 up to 20 mm in diameter. All brazed tips are equipped with a DT chipbreaker to assist form chips during the drilling process.Brazed Tip with Chip SplittingBrazed Tip without Chip SplittingExplanation of Drilling Headswith Brazed Tips DescriptionExample:DSD %u2013 E3 23.55 DT %u2013 PZX2T1 2 3 4 51 Designation of Drilling HeadDSD %u2013 drilling head for deep drilling using single tube systemDDD %u2013 drilling head for deep drilling using double tube system2 Connection TypeE0 %u2013 external single start thread connection carry single brazed tip E1 %u2013 external 2 or 4 start thread connection carry single brazed tipE2 %u2013 external 2 start thread connection carry 2 brazed tipE3 %u2013 external 4 start thread connection carry 3 brazed tip3 Cutting Diameter (DC)DC 4 Chipbreaker TypeAll brazed tips are equipped with a DT chipbreaker5 Available Carbide Grades: PZX2T, P1X2T, P0X2T, PZT, P1T, P0T, PZN, P1N, P0N, KZK, K1K, K0K
