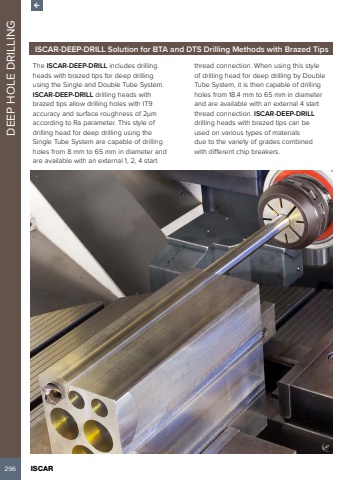

296 ISCAR DEEP HOLE DRILLINGISCAR-DEEP-DRILL Solution for BTA and DTS Drilling Methods with Brazed TipsThe ISCAR-DEEP-DRILL includes drilling heads with brazed tips for deep drilling using the Single and Double Tube System. ISCAR-DEEP-DRILL drilling heads with brazed tips allow drilling holes with IT9 accuracy and surface roughness of 2%u00b5m according to Ra parameter. This style of drilling head for deep drilling using the Single Tube System are capable of drilling holes from 8 mm to 65 mm in diameter and are available with an external 1, 2, 4 start thread connection. When using this style of drilling head for deep drilling by Double Tube System, it is then capable of drilling holes from 18.4 mm to 65 mm in diameter and are available with an external 4 start thread connection. ISCAR-DEEP-DRILLdrilling heads with brazed tips can be used on various types of materials due to the variety of grades combined with different chip breakers.
