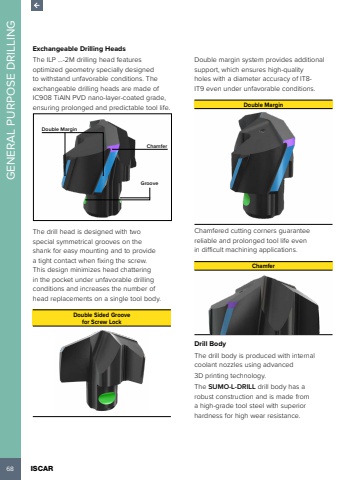

68 ISCAR GENERAL PURPOSE DRILLINGExchangeable Drilling HeadsThe ILP ...-2M drilling head features optimized geometry specially designed to withstand unfavorable conditions. The exchangeable drilling heads are made of IC908 TiAlN PVD nano-layer-coated grade, ensuring prolonged and predictable tool life. Double MarginChamferGrooveThe drill head is designed with two special symmetrical grooves on the shank for easy mounting and to provide a tight contact when fixing the screw. This design minimizes head chattering in the pocket under unfavorable drilling conditions and increases the number of head replacements on a single tool body. Double Sided Groovefor Screw LockDouble margin system provides additional support, which ensures high-quality holes with a diameter accuracy of IT8-IT9 even under unfavorable conditions.Double MarginChamfered cutting corners guarantee reliable and prolonged tool life even in difficult machining applications.ChamferDrill BodyThe drill body is produced with internal coolant nozzles using advanced3D printing technology. The SUMO-L-DRILL drill body has a robust construction and is made from a high-grade tool steel with superior hardness for high wear resistance.
