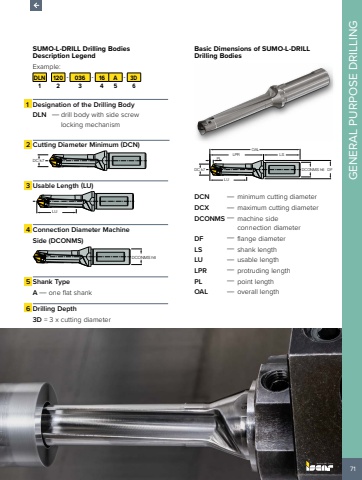

71GENERAL PURPOSE DRILLINGSUMO-L-DRILL Drilling Bodies Description Legend Example:DLN 120 - 036 - 16 A - 3D1 2 3 4 5 61 Designation of the Drilling BodyDLN %u2014 drill body with side screw locking mechanism2 Cutting Diameter Minimum (DCN)DC k73 Usable Length (LU) LU4 Connection Diameter Machine Side (DCONMS) DCONMS h65 Shank TypeA %u2014 one flat shank6 Drilling Depth3D = 3 x cutting diameterBasic Dimensions of SUMO-L-DRILL Drilling BodiesDCONMS h6 DFLPR LSOALPLDC k7LUDCN %u2014 minimum cutting diameterDCX %u2014 maximum cutting diameterDCONMS %u2014 machine side connection diameterDF %u2014 flange diameterLS %u2014 shank lengthLU %u2014 usable lengthLPR %u2014 protruding lengthPL %u2014 point lengthOAL %u2014 overall length
