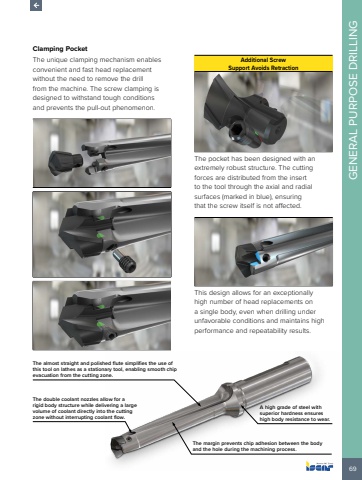

69GENERAL PURPOSE DRILLINGClamping PocketThe unique clamping mechanism enables convenient and fast head replacement without the need to remove the drill from the machine. The screw clamping is designed to withstand tough conditions and prevents the pull-out phenomenon.Additional Screw Support Avoids RetractionThe pocket has been designed with an extremely robust structure. The cutting forces are distributed from the insert to the tool through the axial and radial surfaces (marked in blue), ensuring that the screw itself is not affected.This design allows for an exceptionally high number of head replacements on a single body, even when drilling under unfavorable conditions and maintains high performance and repeatability results.The almost straight and polished flute simplifies the use of this tool on lathes as a stationary tool, enabling smooth chip evacuation from the cutting zone.A high grade of steel with superior hardness ensures high body resistance to wear.The margin prevents chip adhesion between the body and the hole during the machining process. The double coolant nozzles allow for a rigid body structure while delivering a large volume of coolant directly into the cutting zone without interrupting coolant flow.
