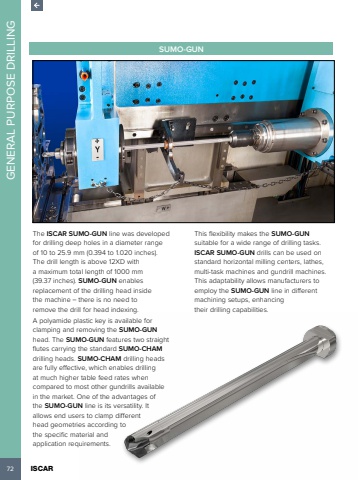

72 ISCAR GENERAL PURPOSE DRILLINGSUMO-GUNThe ISCAR SUMO-GUN line was developed for drilling deep holes in a diameter range of 10 to 25.9 mm (0.394 to 1.020 inches). The drill length is above 12XD with a maximum total length of 1000 mm (39.37 inches). SUMO-GUN enables replacement of the drilling head inside the machine %u2013 there is no need to remove the drill for head indexing.A polyamide plastic key is available for clamping and removing the SUMO-GUNhead. The SUMO-GUN features two straight flutes carrying the standard SUMO-CHAMdrilling heads. SUMO-CHAM drilling heads are fully effective, which enables drilling at much higher table feed rates when compared to most other gundrills available in the market. One of the advantages of the SUMO-GUN line is its versatility. It allows end users to clamp different head geometries according to the specific material and application requirements.This flexibility makes the SUMO-GUNsuitable for a wide range of drilling tasks. ISCAR SUMO-GUN drills can be used on standard horizontal milling centers, lathes, multi-task machines and gundrill machines. This adaptability allows manufacturers to employ the SUMO-GUN line in different machining setups, enhancing their drilling capabilities.
