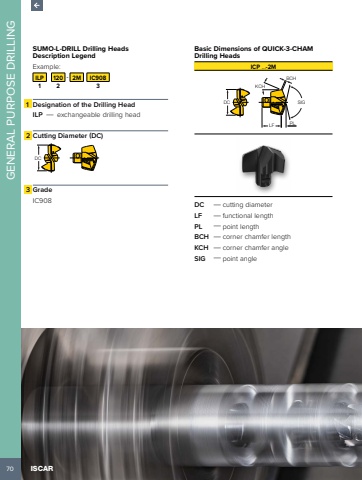

70GENERAL PURPOSE DRILLINGISCARSUMO-L-DRILL Drilling Heads Description Legend Example:ILP 120 - 2M IC9081 2 31 Designation of the Drilling HeadILP %u2014 exchangeable drilling head 2 Cutting Diameter (DC)DC3 GradeIC908Basic Dimensions of QUICK-3-CHAM Drilling HeadsICP %u2026-2MDCLF PLKCHBCHSIGDC %u2014 cutting diameterLF %u2014 functional lengthPL %u2014 point lengthBCH %u2014 corner chamfer lengthKCH %u2014 corner chamfer angleSIG %u2014 point angle
