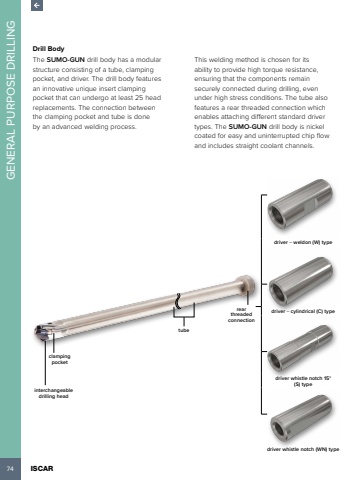

74 ISCAR GENERAL PURPOSE DRILLINGDrill BodyThe SUMO-GUN drill body has a modular structure consisting of a tube, clamping pocket, and driver. The drill body features an innovative unique insert clamping pocket that can undergo at least 25 head replacements. The connection between the clamping pocket and tube is done by an advanced welding process. This welding method is chosen for its ability to provide high torque resistance, ensuring that the components remain securely connected during drilling, even under high stress conditions. The tube also features a rear threaded connection which enables attaching different standard driver types. The SUMO-GUN drill body is nickel coated for easy and uninterrupted chip flow and includes straight coolant channels. interchangeable drilling headclamping pockettuberear threaded connectiondriver %u2013 weldon (W) typedriver %u2013 cylindrical (C) typedriver whistle notch 15%u00b0 (S) typedriver whistle notch (WN) type
