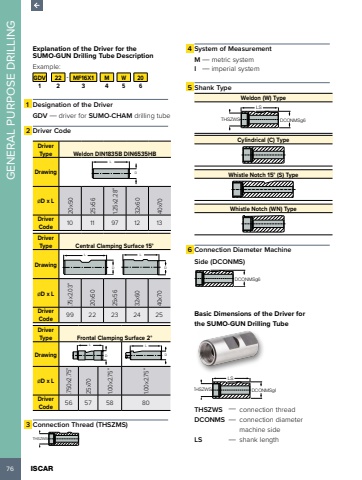

76 ISCAR GENERAL PURPOSE DRILLINGExplanation of the Driver for the SUMO-GUN Drilling Tube Description Example:GDV 22 - MF16X1 M W 201 2 3 4 5 61 Designation of the DriverGDV %u2014 driver for SUMO-CHAM drilling tube2 Driver Code Driver Type Weldon DIN1835B DIN6535HBDrawingLD%u00f8D x L 20x50 25x56 1.25x2.28%u201d32x60 40x70Driver Code 10 11 97 12 13Driver Type Central Clamping Surface 15%u00b0DrawingLDLD%u00f8D x L .75x2.03%u201d20x50 25x56 32x60 40x70Driver Code 99 22 23 24 25Driver Type Frontal Clamping Surface 2%u00b0DrawingLDLD%u00f8D x L .750x2.75%u201d25x70 1.00x2.75%u201d1.00x2.75%u201dDriver Code 56 57 58 803 Connection Thread (THSZMS) THSZWS4 System of MeasurementM %u2014 metric systemI %u2014 imperial system5 Shank Type Weldon (W) TypeTHSZWSLSDCONMSg6Cylindrical (C) TypeDCONMSg6Whistle Notch 15%u00b0 (S) TypeWhistle Notch (WN) Type6 Connection Diameter Machine Side (DCONMS) DCONMSg6Basic Dimensions of the Driver for the SUMO-GUN Drilling TubeTHSZWSLSWeldon (W) TypeDCONMSg6THSZWS %u2014 connection threadDCONMS %u2014 connection diameter machine sideLS %u2014 shank length
