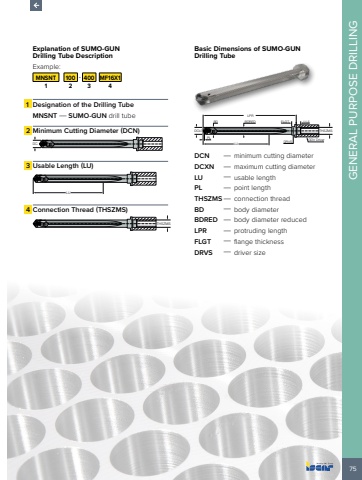

75GENERAL PURPOSE DRILLINGExplanation of SUMO-GUN Drilling Tube Description Example:MNSNT 100 - 400 MF16X11 2 3 41 Designation of the Drilling TubeMNSNT %u2014 SUMO-GUN drill tube2 Minimum Cutting Diameter (DCN) DC3 Usable Length (LU) LU4 Connection Thread (THSZMS) THSZMSBasic Dimensions of SUMO-GUN Drilling TubeTHSZMSGDV DriverLU DRVSDCk7PLLPRBD BDRED FLGT 11.5DCN %u2014 minimum cutting diameterDCXN %u2014 maximum cutting diameterLU %u2014 usable lengthPL %u2014 point lengthTHSZMS %u2014 connection threadBD %u2014 body diameterBDRED %u2014 body diameter reducedLPR %u2014 protruding lengthFLGT %u2014 flange thicknessDRVS %u2014 driver size
